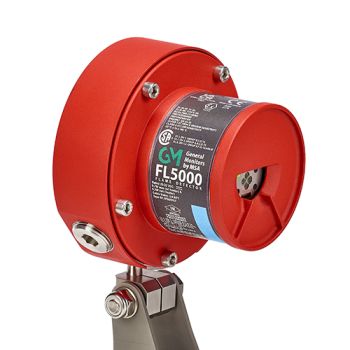

FL5000 MSIR Flame detector
FL5000 MSIR Flame detector
Equipped with advanced IR sensors and an intelligent Artificial Neural Network (ANN), the FL5000 Flame Detector minimizes false alarms by expertly distinguishing actual flames from other radiation sources, helping to ensure operational efficiency and cost savings.
Details
The FL5000 Flame Detector is a highly discriminating detector, which makes use of multiple infrared (MSIR) sensors sampling different IR spectrum wavelengths.
MSIR’s flame decision is informed by input from several infrared wavelengths using flicker rate information as it is independent of environmental factors like wind or fog.
IR channels absorb light at different wavelengths associated with CO₂ emissions and visible light, helping detect the presence of a flame with greater certainty than any one channel alone.
More Information
| Maximum range | 95 m |
|---|---|
| Typical response time | 10 sec |
| FM tested fuel sources | n-Heptane, gasoline, methanol, methane, butane, propane, ethane, ethanol, crude oil, ethylene glycol, isopropanol, diesel, JP4, JP5, JP8, jet fuel A, marina fuel, kerosene, xylene, MEK, wood, cardboard |
| Maximum field of view | ±15° @ 310 ft. (95 m) ±30° @ 210 ft. (64 m) ±45° @ 110 ft. (34 m) |
