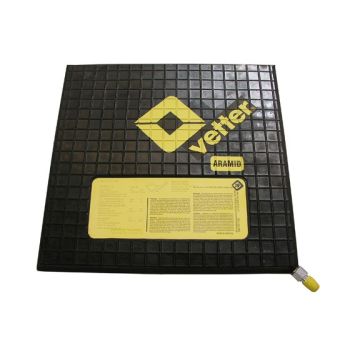

Lifting bag V10 Aramide 8 Bar
Lifting bag V10 Aramide 8 Bar
The low insertion height of our pneumatic mini lifting bags allows you to quickly free injured people. Lift even the heaviest loads easily and quickly. In use, the robust Vetter mini lifting bags convince with their versatility. Lift, push, squeeze, pry or split depending on what the situation requires.
Downloads
Details
The low insertion height of our pneumatic mini lifting bags allows you to quickly free injured people. Lift even the heaviest loads easily and quickly. In use, the robust Vetter mini lifting bags convince with their versatility. Lift, push, squeeze, pry or split depending on what the situation requires. Safe and reliable, even on difficult slopes. The optimized surface profile of the Vetter mini lifting bags can even handle slippery surfaces such as sand or grass without any problems. The special safety coupling prevents the hose from unintentionally coming loose from the pneumatic lifting bag.
FEATURES:
- Insertion height from 2,5 cm
- non-slip surface
- Aramid reinforcement
- Safety coupling
More Information
| Dimensions: | 37 x 37 cm |
|---|---|
| Weight: | 3.3 kg |
| Working pressure: | 8 Bar |
| Test pressure: | 14 Bar |
| Bursting pressure: | 32 Bar |
| Max. lifting power: | 9,6 T |
| Max. lifting height: | 20,3 cm |
| Air requirement at working pressure: | 82,8 L |
| Insertion height: | 2,5 cm |
