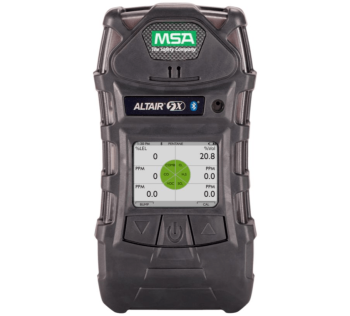

MSA Altair 5X PID Multigas detector

MSA Altair 5X PID Multigas detector

Articlenr
3310119615

The MSA ALTAIR 5X Gas Detector is capable of measuring up to 6 gases simultaneously and is now available with integrated PID sensor for VOC detection. Driven by advanced MSA XCell Sensor Technology, the ALTAIR 5X Gas Detector delivers faster response time, better stability, accuracy, longer service life, and cost savings over the life of the instrument. The price will be calculated based on the requested configuration. Contact our gas detection specialists to choose the right configuration. - Detects combustible gases in LEL and/or volume percentage range, oxygen, carbon monoxide, carbon dioxide, hydrogen sulfide, sulfur dioxide, ammonia, chlorine, VOCs, and many others depending upon sensor configuration. - Rugged overmolded polycarbonate housing provides unsurpassed durability, including ability to survive 10-ft. (3m) drop; IP65-certified. - Field-proven integral pump provides consistent gas flow, eliminating concerns of externally-attached components. - High performance XCell Sensors last longer: Typical life greater than 4 years for combustible, O2, CO/H2S, SO2, CO/NO2 and CO (high concentration) sensors. Typical life greater than 3 years for NH3 and Cl2 sensors. Most sensor response and clear times <15 seconds. - Less calibration gas used: Requires about half of test gas typically used for calibration and bump tests. Rapid bump test gives results in less than 10 seconds for most common sensor configurations. Span calibration time of 60 seconds for most common sensor configurations. - MotionAlert feature option tells others that user has become immobile. - InstantAlert feature provides manual alarm to alert others as to a potentially hazardous situation. - PID option allows for accurate, reliable VOC response with programmable reference factors. - Large buttons and bright display provide easy operation, even when users wear gloves. - Exclusive end-of-sensor warning cautions users when unit's sensor nears end-of-life. - Versatile MSA Link Software allows users to transmit data to a computer. - Compatible with GALAXY GX2 Test System and MSA Link Pro Software for fleet management. - Wireless bluetooth included standard.

Downloads

Details

The MSA ALTAIR 5X Gas Detector is capable of measuring up to 6 gases simultaneously and is now available with integrated PID sensor for VOC detection. Driven by advanced MSA XCell Sensor Technology, the ALTAIR 5X Gas Detector delivers faster response time, better stability, accuracy, longer service life, and cost savings over the life of the instrument.
This version is only equipped with the PID sensor. Please, contact our gas detection specialists via maritime@hobrand-algebra.nl to choose the right configuration.

  • Detects combustible gases in LEL and/or volume percentage range, oxygen, carbon monoxide, carbon dioxide, hydrogen sulfide, sulfur dioxide, ammonia, chlorine, VOCs, and many others depending upon sensor configuration.
  • Rugged overmolded polycarbonate housing provides unsurpassed durability, including ability to survive 10-ft. (3m) drop; IP65-certified.
  • Field-proven integral pump provides consistent gas flow, eliminating concerns of externally-attached components.
  • High performance XCell Sensors last longer:
  • Typical life greater than 4 years for combustible, O2, CO/H2S, SO2, CO/NO2 and CO (high concentration) sensors.
  • Typical life greater than 3 years for NH3 and Cl2 sensors.
  • Most sensor response and clear times <15 seconds.
  • Less calibration gas used: Requires about half of test gas typically used for calibration and bump tests.
  • Rapid bump test gives results in less than 10 seconds for most common sensor configurations.
  • Span calibration time of 60 seconds for most common sensor configurations.
  • MotionAlert feature option tells others that user has become immobile.
  • InstantAlert feature provides manual alarm to alert others as to a potentially hazardous situation.
  • PID option allows for accurate, reliable VOC response with programmable reference factors.
  • Large buttons and bright display provide easy operation, even when users wear gloves.
  • Exclusive end-of-sensor warning cautions users when unit's sensor nears end-of-life.
  • Versatile MSA Link Software allows users to transmit data to a computer.
  • Compatible with GALAXY GX2 Test System and MSA Link Pro Software for fleet management.
  • Wireless bluetooth included standard.



More Information

More Information
Val test 3m
Bescherming IP65
Gewicht 453 gr (zonder riem clip, PID of IR sensor)
Geluid arm >95 dB
Run time >70 uur op kamertemperatuur
Oplaadtijd <= 6 uur
